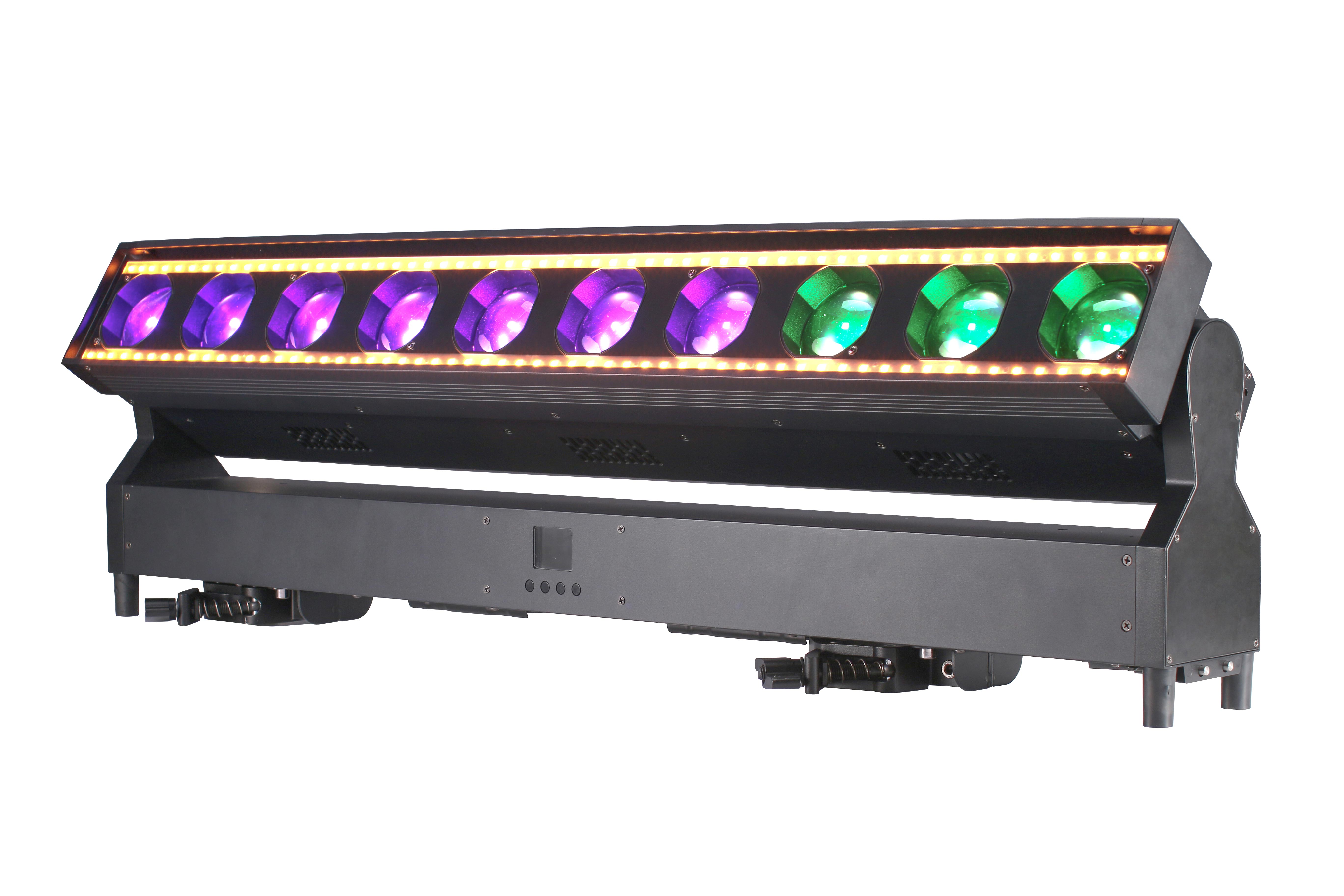

BO-1060Z10x60W Zoom+120*1W Moving Bar

Optics

Middle:10*60W 4IN1 RGBW LED Both sides:120*1W RGBA 4in1 LED

Average life span> 50000 hours

Beam Angle:4°- 45°

Glass light guide + PMMA high-quality optical lens

Power Consumption: 680W土5%

Power Voltage: AC 100-240V, 50/60Hz

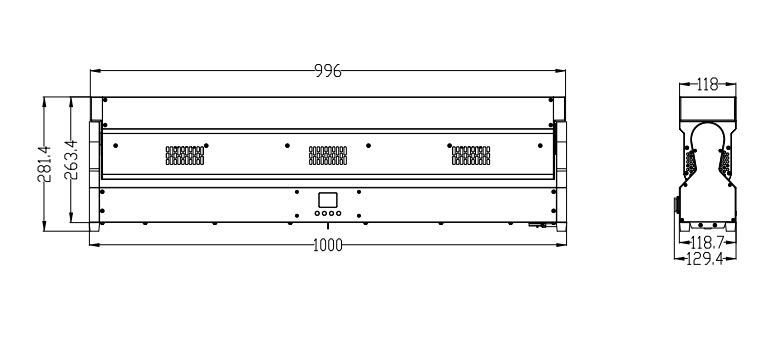

Dimension: 1000x129.5x281.5mm

Net Weight: 21 kgs

Carton size:108.5*22.5*37.5mm,GW:24.2kg



Control

DMX Channel:26/35/43/125CH

Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM



Pan

200°, accuracy 1.2°/step, fine-tuning accuracy: 0.0034°;

Using magnetic coded reset system



Construction

Display:1.8 inch TFT color display with 180° reversible ,

Data In/Out socket: 3-pin XLR sockets

Protection Rating: IP20



Features

Full optical domain dimming, 65536-level dimming accuracy;

Fast strobe 1~25Hz;

LED Single Control;

Optics

Middle:10*60W 4IN1 RGBW LED Both sides:120*1W RGBA 4in1 LED

Average life span> 50000 hours

Beam Angle:4°- 45°

Glass light guide + PMMA high-quality optical lens

Power Consumption: 680W土5%

Power Voltage: AC 100-240V, 50/60Hz

Dimension: 1000x129.5x281.5mm

Net Weight: 21 kgs

Carton size:108.5*22.5*37.5mm,GW:24.2kg



Control

DMX Channel:26/35/43/125CH

Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM



Pan

200°, accuracy 1.2°/step, fine-tuning accuracy: 0.0034°;

Using magnetic coded reset system



Construction

Display:1.8 inch TFT color display with 180° reversible ,

Data In/Out socket: 3-pin XLR sockets

Protection Rating: IP20



Features

Full optical domain dimming, 65536-level dimming accuracy;

Fast strobe 1~25Hz;

LED Single Control;
