Optics
• LED Source: 60W RGBW 4-in-1 LED

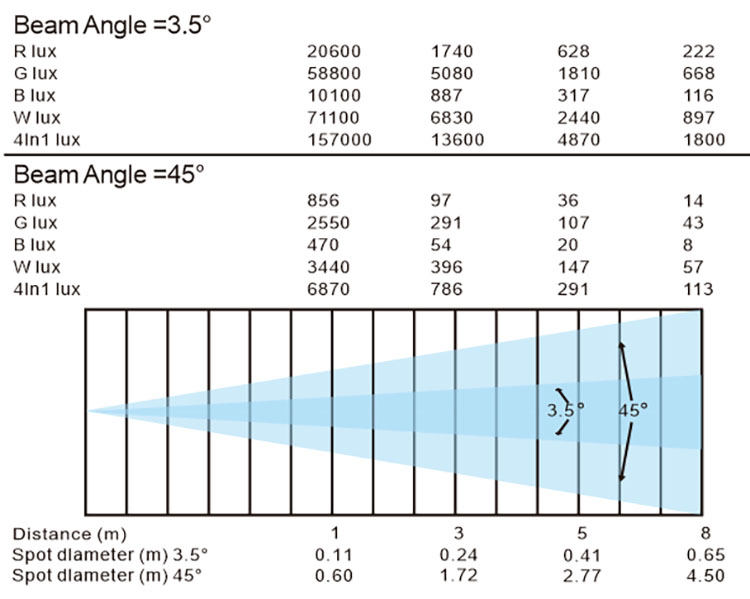

• Beam Angle: 3.5°- 45°
• Power Consumption: 500W
Specification

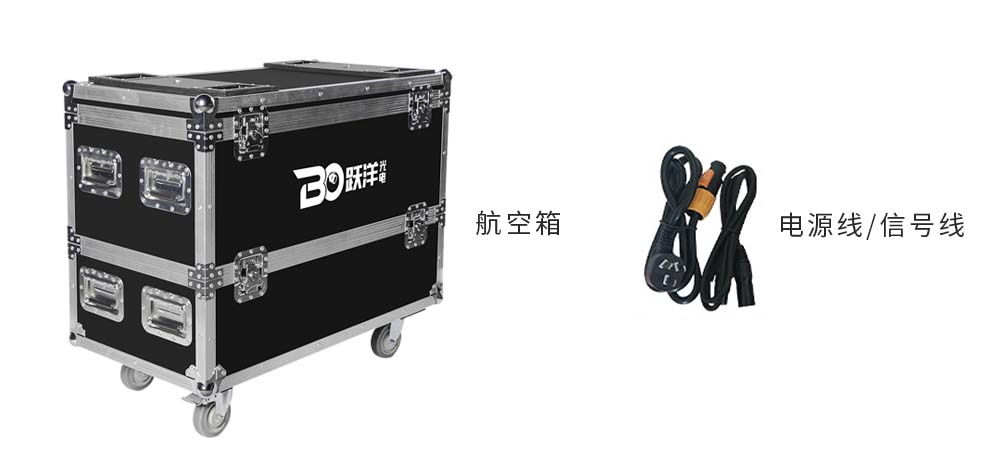

• Standard package: carton; Flight case is optional
• Single led size: 181x140x140mm
• Single led weight: 1.88kg
• Single led with hanger weight: 2.5kg
• Control box weight: 2.59kg
Control
• Control Modes: DMX512/Master-Slave/AutoRun/Music/Manual/RDM
• DMX Mode: 23/28/42/50/56 Channels
Construction
• Display: 180°reversible 1.8-inch TFT color display(Chinese or English)

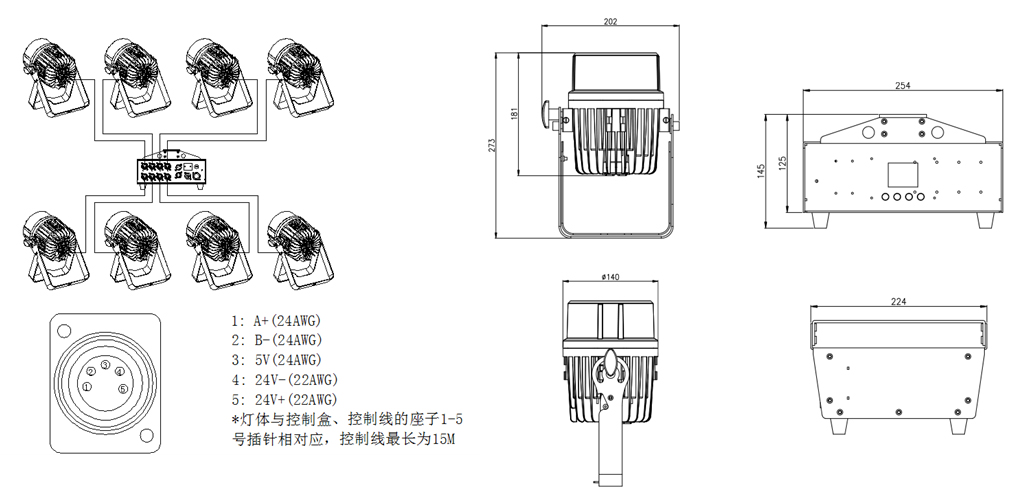

• Data In/Out Socket: waterproof 5-pin XLR sockets(24V power + signal line)
• Power Socket: PowerCon in/out 3-pin
• Protection Rating: IP65
Features
• LED single control
• One control box (not waterproof) controls eight belts for focusing, which can be connected 4 units in series at 230V(32PCS lights), and 2 units in series at 120V(16pcs lights)
• Single-led control, zoom effect, ArtNet control, infinite Pan and tilt rotation

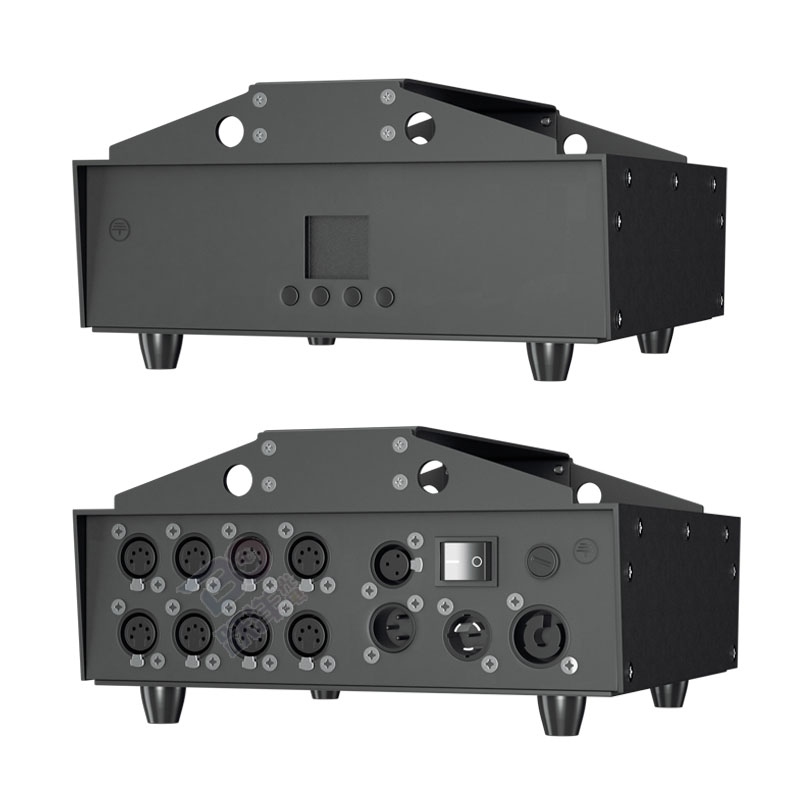

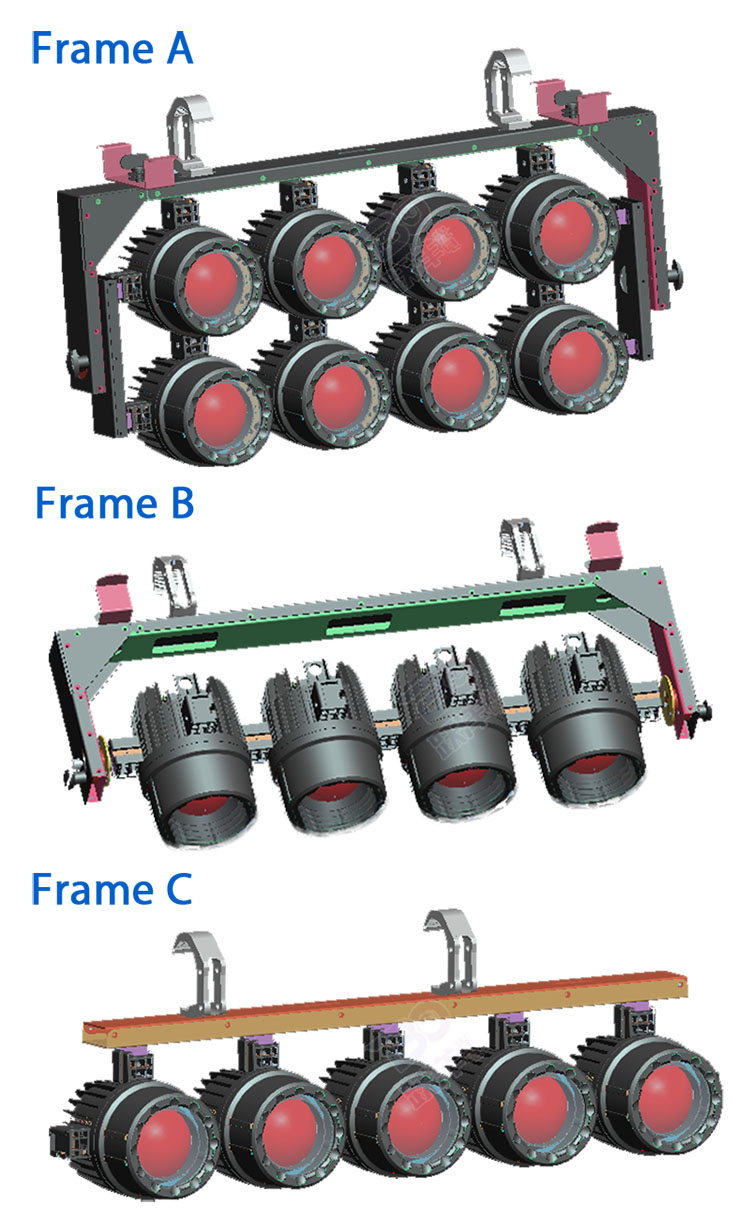

• A control box (not waterproof) controls eight 60W4in1 die-casting heads with focus and waterproof, supporting point control, Can be installed separately by hangers, and can be assembled in multiple
• The control line is a 3M long silicone cable, and an Electronic 5-core waterproof connector (the cable connecting the lamp holder to the control box)
• High-efficiency optical system, Superbeam effect plus zoom
