Optics
• Light Source: 6x40W 4IN1 RGBW LED

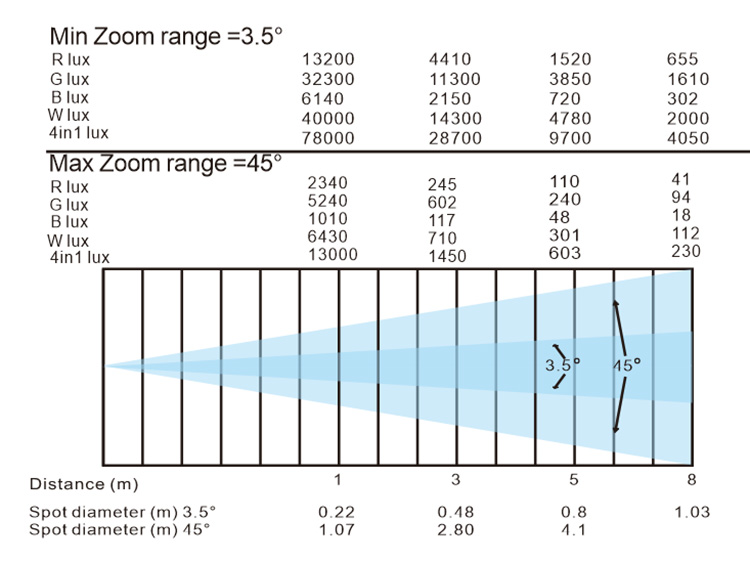

• Zoom Angle: 3.5 – 45 Degrees
• Power Consumption: 220W
• Power Voltage: AC 100-240V, 50/60Hz
Control
• DMX Channel: 21/24/32/56 Channel
• Control Modes: DMX512/Master-Slave/Auto Run/Music/RDM
Pan/Tilt
• Pan/Tilt: 540°/ 270°
• Pan/Tilt Resolution: 8/16 bit
Construction
• Display: LCD Display
• Data In/Out Socket: 3-pin XLR sockets
• Power Socket: Power con in/out
• Protection Rating: IP20

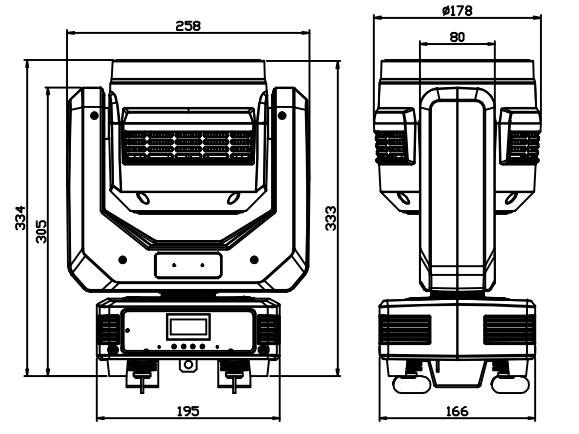

• Dimension: 258mm×178mm×334mm
• Net Weight: 6 kg
• Carton Package 1in1 Size: 310 x 230 x 420 mm
• Gross Weight: 7 kg
• Carton Package 4in1 Size: 655 x 495 x 445 mm
• Gross Weight：28.5 kg

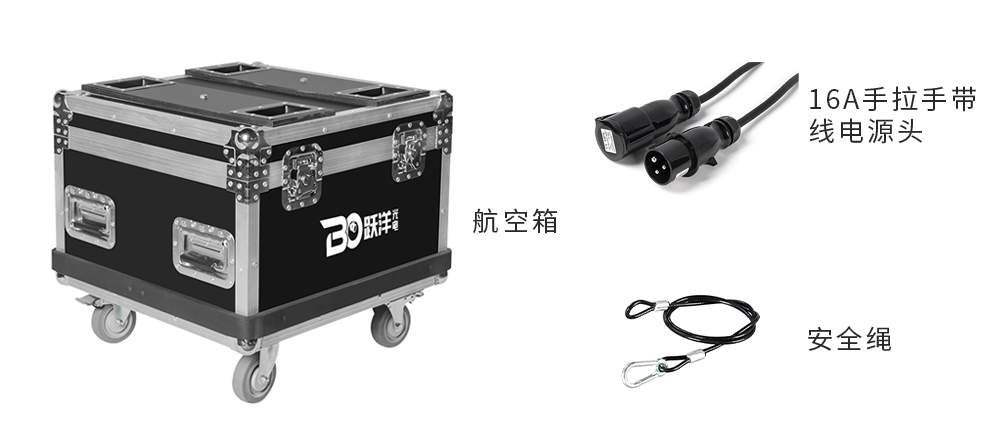

• Flight Case 6in1 Size: 910 x 570 x 550 mm
• Gross Weight: 70.5 kg
Features
• Motorized liner zoom system, zoom range: 3.5°~45°
• Single LED control
• Outstanding color macro effect
• Dimmer: 0~100% smooth dimming
• Variable strobe effects
• Fast, quiet operation and flicker free
